● FLUID DYNAMICS SEELEVEL 709 DIAGNOSTICS FLOJET / SANICON TURBO

Thor RV Plumbing Systems, Holding Tank Monitors & Macerator Pump Calculator

Thor RV plumbing systems integrate fresh water holding tanks, gray water drainage, and black waste holding tanks monitored via capacitance sensors like SeeLeveL. Macerator pumps grind solids for extended discharge runs, requiring proper dilution ratios and holding tank chemical proportions.

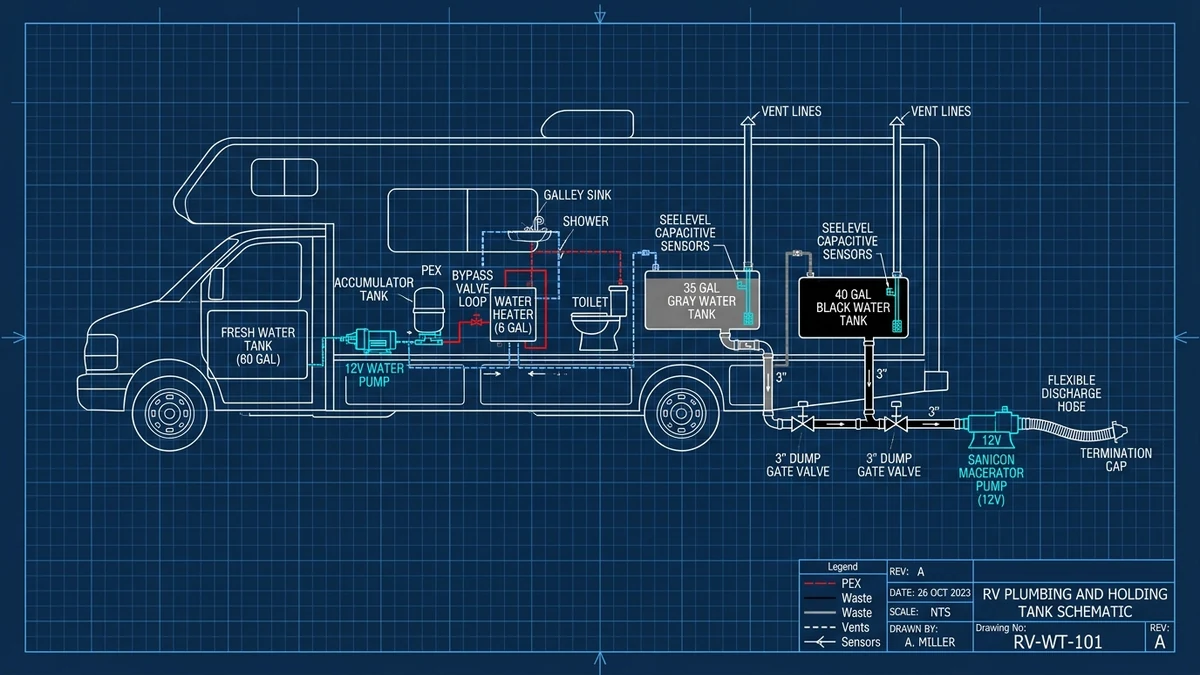

Thor Motor Coach Plumbing & Waste Tank System CAD Schematic Blueprint
High-precision CAD schematic blueprint of Thor Motor Coach fresh tank, winterization bypass kit, macerator dump pump, and gray/black holding tanks.
TOOL-03 / FLUID MECHANICS & WINTERIZATION

Waste Holding Tank, Sanitization & Winterization Antifreeze Solver

Bleach (50 PPM) 4.0 fl oz
Discharge Time 6.7 min
Antifreeze Gal 2.6 gal
Factory potable capacity (Four Winds: 40 gal, Hurricane: 50 gal, Palazzo: 95 gal).
Sink and shower gray water storage volume.
Toilet black water holding capacity.
30 ft
24 ft (Class C Compact) 34 ft (Mid-Profile) 45 ft (Class A Diesel)
Always turn bypass valves before pumping RV antifreeze to save 6 gallons.
50 ft
10 ft (Dump Bay) 50 ft (Standard) 100 ft (Max Lift)
Bleach Sanitization (50 PPM)
4.0 fl oz
4.0 fl oz per 50 gal fresh water (CDC standard)
Winterization Antifreeze
2.6 gallons
Bypass closed: 2.6 gal PEX lines
Black Tank Digestant
4.0 fl oz
0.10 fl oz per gallon holding capacity
Estimated Discharge Time
6.7 minutes
Combined 80 gal at 12 GPM

Macerator & Winterization Standards

  • Winterization Formula: 2.0 gal base + 0.1 gal/ft over 24 ft coach length.
  • Air Blowout Limit: Do not exceed 40 PSI air compressor blowout pressure on PEX lines.
  • Pump Thermal Cutoff: 15-minute continuous macerator duty cycle ceiling.
STATUTORY MODEL CDC Safe Water System Protocols & ANSI/RVIA Low Voltage Potable Water Guidelines

CDC / RVIA Potable Water Tank Sanitization Ratio

C_bleach (fl oz) = (V_fresh / 50 gal) × 4.0 fl oz
Notation: Bleach (oz) = Fresh Tank Capacity * 0.08; Discharge Time = (Gray + Black Vol) / Effective GPM

Variable Definition & Units

V_fresh
Fresh Potable Tank Volume [gal]

Nominal gallon capacity of coach fresh water storage tank.

C_bleach
6% Sodium Hypochlorite Bleach [fl oz]

Household unscented bleach volume required to achieve 50 PPM chlorine solution.

GPM
Effective Macerator Flow Rate [GPM]

Shredder pump output volume corrected for line friction and hose diameter.

Calibrated Example:

For a 50-gallon tank: C_bleach = (50 / 50) * 4.0 = 4.0 fl oz. For a 20-gallon compact tank: C_bleach = (20 / 50) * 4.0 = 1.6 fl oz bleach with 2 potable rinse cycles.

RV Macerator Pump Operation, Amperage Draw & Discharge Flow Rates

Waste macerator pumps, such as the FloJet 18555-000A and Thetford Sanicon Turbo series, replace conventional 3-inch gravity dump hoses with high-velocity electric rotary shredder blades. Powered by a heavy-duty permanent magnet 12V DC motor, these units draw between 12 and 15 continuous amps under peak torque conditions when grinding solid black waste and cellulose fibers. The high-speed cutter impeller spins at approximately 3,000 RPM, pulverizing solids to particles smaller than 1/8 inch before ejecting the effluent through a 0.75-inch or 1.0-inch diameter line.

15 Amps DC Peak Motor Load Permanent magnet rotary cutter torque draw under solid waste grinding.
15 Minutes Max Duty Cycle Mandatory thermal rest interval to prevent impeller heat blistering.
50 PPM Potable Chlorine Standard CDC statutory concentration for biofilm and pathogen deactivation.

Because macerator motor coils generate significant heat, operators must observe the manufacturer-specified 15-minute maximum duty cycle. Extended runs beyond 15 continuous minutes without fluid coolant will trip the internal thermal overload switch or blister the rubber impeller. For extended discharge distances exceeding 50 feet, flow velocity declines from 14.0 GPM down to 8.5–10.0 GPM due to hydraulic friction head loss.

Fresh Water Holding Tank Sanitization Bleach Dilution Formula

Potable water system decontamination is mandatory following winter storage or extended dormancy to eradicate bacterial biofilm, Giardia cysts, and algae. The standard procedure mandates establishing a 50 PPM available chlorine concentration throughout the plumbing network:

Mix 4.0 fluid ounces of standard 6% unscented household bleach per 50 gallons of water capacity. Pre-dilute the measured bleach into a one-gallon bucket of water before pouring into the gravity water fill. Fill the potable tank with water, pressurize the system with the 12V water pump, and open every hot and cold faucet until a distinct chlorine aroma is detected. Let the solution dwell in closed lines for a minimum of 4 hours (or 12 hours for a 25 PPM concentration) before performing two complete potable rinse cycles.

To coordinate electrical troubleshooting on pump rocker switches, consult our macerator pump 12V DC switch wiring diagrams. For complete chassis specifications and load ratings, return to the master Thor RV specifications hub, and explore the fresh tank winterization and sanitization protocol before long-term winter storage.

DIAGNOSTIC MATRIX

SeeLeveL 709 Digital Monitor Diagnostic Reference

Display Code Fault Definition Probable Root Cause Field Remediation Procedure
Opn Open Circuit Fault Blue sender bus wire disconnected or chassis ground eyelet broken Trace blue 18 AWG wire from console to sender strip; re-crimp spade connector
Sht Short Circuit Fault Pinched bus wire contacting steel chassis frame or wet terminal junction Inspect harness pass-throughs near wet bay floor; check for wire insulation chafing
Err Calibration Sync Error Sender strip cut tabs mismatched or strip height exceeds tank dimension Verify top segment tab has been correctly snipped to match actual tank height in inches
0% - 100% Normal Telemetry Capacitive dielectric reading active through polyethylene tank wall Sender calibrated; accuracy is within ±3% of true fluid volume
PLUMBING FAQ

Frequently Answered Questions About RV Plumbing & Macerator Pumps

How much bleach is required to sanitize an RV fresh water tank?

The statutory CDC and RVIA sanitization dilution standard requires 4.0 fluid ounces of standard unscented 6% household bleach per 50 gallons of fresh water capacity (or 1 fluid ounce per 12.5 gallons). This achieves a 50 PPM chlorine solution that must dwell in lines for 4 hours.

What is the maximum run distance for an RV macerator pump?

Using a 1.0-inch discharge hose, 12V macerator pumps like the FloJet 18555 or Sanicon Turbo can pump waste up to 100 feet horizontally or lift up to 10-15 feet vertically. Extended distances beyond 50 feet reduce flow velocity from 14 GPM down to 8-10 GPM due to pipe friction loss.

How do SeeLeveL 709 tank monitors read liquid levels through plastic tanks?

SeeLeveL 709 systems use external capacitive sender strips adhered to the exterior polyethylene tank wall. They measure the dielectric capacitance delta between air and fluid, eliminating the false full readings caused by internal probe sludge.
